Setting the Date and Time

This chapter explains how the set the system and hardware clocks on your server.

The System Time module

All Unix systems have an internal clock to keep track of the current time, even when the system is powered off. Linux systems effectively have two clocks � one that is maintained by the Kernel when the system is running, and a separate hardware clock that runs all the time. The kernel's system time is set based on the hardware time when the kernel is loaded, so they should be synchronized. However, if one of the clocks is slower than the other it is possible for the hardware and system times to fall out of sync on a system that has been running for a long time.

All Unix systems store the time internally as the number of seconds since 1st January, 1970 GMT. For display, this is converted to a human-readable local time based on the system's configured time zone. All Linux distributions allow you to choose your time zone at install time, and include a tool for changing it later. However, there is no support in Webmin for choosing a time zone.

The system and hardware times can be displayed and set using the date and hwclock commands respectively. Only the root user can change the system time, and only root can use the hwclock command to display the hardware time.

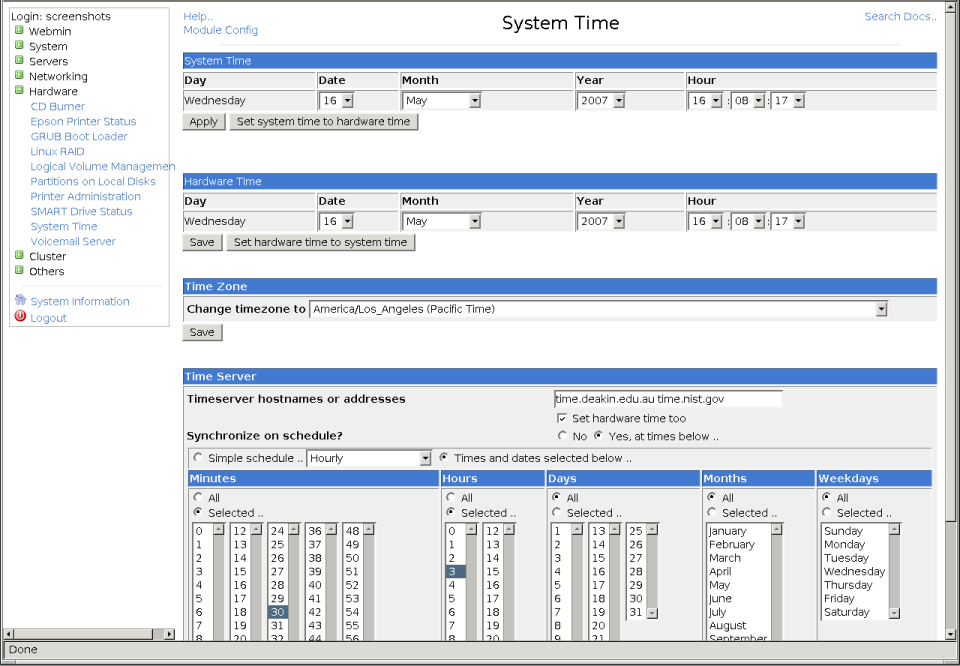

You can adjust both the system and hardware times using the System Time module, which can be found under the Hardware category. The module only really has one page, which is shown in the screenshot below. Both times on the page are updated every five seconds, so that they remain correct even if the page has been displayed in your browser for a long period.

The System Time module

Changing the system time

The system time can be brought forwards or sent backwards at any time using this Webmin module. Generally, this is quite safe - however, large changes may confuse some programs that do not expect to see the current time go backwards or jump forwards by a huge amount.

To change the system time, the steps to follow are :

1. On the main page of the module, select a new Day, Month, Year, Hour, Minute and Second in the System Time section.
2. Click the Apply button below the fields. The new date and time will be set, and the page will be re-displayed.

It is also possible to force the system time to be set to the current hardware time, by clicking the Set system time to hardware time button. Either way, any change will immediately be visible to all programs running on your system, such as desktop clocks, syslog and mail clients.

Change the hardware time

Because the hardware time is only read by the kernel when the system boots, it can be changed without having any effect on programs that are currently running. To change it, follow these steps :

1. On the main page of the module, select a new Day, Month, Year, Hour, Minute and Second in the Hardware Time section.
2. Click the Apply button below the fields. The new date and time will be set, and the page will be re-displayed.

You can also synchronize the hardware time with the system time by clicking the Set hardware time to system time button. It is a good idea to do this every now and then on a system that hasn't been re-booted for a long time, so that they do not drift too far out of sync.

Changing the timezone

All Unix systems store the time internally as a number of seconds since 1st Jan 1970, GMT time. When a program (such as the date command) displays the current time to the user, it needs to convert this to the correct timezone, which involves applying the correct time offset and adjusting for daylight savings.

For this reason, your system must have the timezone set correctly to display and log times properly. Fortunately you can do this using the System Time module as follows :

1. Scroll down to the Time Zone section of the main page.
2. Select the correct zone from the list. They are order by continent first, then by city or country.
3. Click Save.

Synchronizing times with another server

The System Time module can also be used to set the system or hardware time based on the system time of another server. The other server must be either running an NTP (Network Time Protocol) server, or have the time protocol enabled in inetd (as explained in chapter 15). For your system to use NTP for synchronization you must have the ntpdate NTP client program installed.

To synchronized the time, the steps to follow are :

1. Enter the hostname or IP address of the other server into the Host/Address field in the Time Server section. It is always better to choose a server that is close by, so that the effect of network latency is minimized. Multiple servers may be entered though.
2. Check the Set hardware time too box, as this should always be updated to match the system time.
3. If you want to have the sync done regularly, change Synchronize on schedule? to Yes and select the times to sync at using the fiels below it. Once per day is typically good enough.
4. Click the Sync and Apply button. If the server cannot be contacted or does not support the NTP or time protocols, an error message will be displayed. Otherwise the time or times will be set and the page re-displayed.

Module access control

Like many other modules, it is possible to restrict what a Webmin user or group can do in the System Time module. However, the available restrictions are very basic due the to module's limited functionality, and do not really make it any more secure for use by un-trusted users.

Once a Webmin user has been granted access to the module as described in WebminUsers, you can limit what he can do by following these steps :

1. In the Webmin Users module, click on System Time next to the name of the user or group that you want to restrict.
2. Change the Can edit module configuration? field to No, so that the user cannot change operating-specific settings.
3. To stop the user changing the system time, set the User can edit system time field to No.
4. To prevent the user from changing the hardware time, set the User can edit hardware time field to No.
5. When done, click the Save button at the bottom of the page to make the new restrictions active.

Other operating systems

Linux is the only operating system supported by the System Time module that has separate hardware and system times. Solaris, Irix, HP/UX and OpenServer? have only a single system time, which can be set in exactly the same ways as on Linux. FreeBSD? , NetBSD? and MacOS? X also only support system time, which can also be set in the same ways, but only to the nearest minute. Other operating systems cannot use this module at all.
