Windows File Sharing with Samba
This page explains the SMB protocol via which Windows systems
share files, and explains how to set up the Samba program to make
files on your Unix server available to Windows clients.
Introduction to SMB and Samba
SMB (Server Message Block) is the protocol used by Windows systems
to share files and printers across a network, just like the NFS
and LPR protocols are used by Unix systems. Any time you use the
Network Neighborhood, My Network Places, or map network drive features of Windows,
the SMB protocol is being used. Because it is the standard method
of file sharing on Windows systems, it has become the most commonly
used method of sharing files on local networks.
Even though SMB is thought of as a Windows protocol, it was originally
developed by DEC and has been implemented by many different companies
and in many products. These days it is often referred to as CIFS
(the Common Internet File System), even though the protocol
itself has not changed. In fact, many ancient clients will still
be able to access modern SMB servers like Samba.
An SMB server is a system that has files or printers that it wants
to allow other hosts access to. An SMB client is a system that wants
to read or write files on a server, or print to a server's printer.
A single system can be both a client and a server, and all releases
of Windows from 95 onwards include software for these purposes.
However, on a typical organization's network there is a single
large server system and many smaller clients that access files
Every host that uses the SMB protocol has a hostname, which is
typically the same as its DNS name. A server host can have multiple
shares, each of which has a unique name and corresponds to a directory
or local printer on the server system. Shares are referred to
using the \\hostname\sharename notation, such as \\corpserver\documents.
On Windows clients, file shares are normally mapped to drive
letters such as S:
so that they can be more easily referred to.
All Windows applications can read and write files on a server
in exactly the same way that they would for local files.
Shared printers accessed by a client are not assigned a drive
letter, but may be connected to a fake printer port such as lpt2:
Clients can send jobs to the printer, view those that are currently
waiting to be printed and cancel jobs submitted by the same user.
Unlike the Unix LPR protocol, clients using a remote printer
must have the appropriate driver installed, and must send data
to the server in the format that the printer actually accepts.
Fortunately, it is possible for Linux and Unix systems to participate
in SMB file and printer sharing as well, or this would be a very
short chapter. The Disk and Network Filesystems module (covered
in chapter 5) allows your Linux system to mount shares from SMB
servers, so that the files they contain can be accessed like any
others. The Printer Administration module (from chapter
22) can be used to set up printers on your system that send jobs
to Windows printer shares.
Those two chapters explain how your system can act as an SMB client,
while this one covers setting up a server so that Windows (and
Linux) clients can access its files and print to its printers.
The software that makes this all possible is called Samba, a completely
free re-implementation of the SMB protocol for Unix systems.
Samba has been available and under development for many years,
ever since the SMB protocol first started to be used on DOS systems.
It allows a Unix system to do as good a job of serving Windows clients
as a real Windows server would - in fact, some would say that it
is even better.
Samba uses two daemon processes, named smbd
. The first
handles actual file or printer share requests from clients,
while the second responds to SMB name lookup requests. Both daemons
use the smb.conf
configuration file, which is usually found
in the /etc
directory. Any change made to this file (either manually
or by using Webmin) will be immediately detected by both daemons,
and will take effect at once. Unlike most other Unix server processes,
they do not need to be signaled to re-read the configuration file
if it changes.
Unfortunately, there are some complexities that arise when
sharing files between Unix and Windows systems. The SMB protocol
has no support for concepts such as file ownership or permissions,
at least not in the form that they exist on Unix systems. NTFS filesystem
access control lists (used on Windows NT, 2000, XP and Vista) are supported
instead, which are incompatible with normal Unix permissions.
Samba does have some support for them, but setting it up is complex
and not covered in this page.
The SMB protocol supports authentication, so that clients can
be forced to provide a valid username and password to the server
before they can access a share. The Samba server uses the standard
Unix user database to validate clients, although actual Unix passwords cannot be used
(for reasons explained later). When
a client logs in to a Samba server, it accesses files with the permissions
of the Unix user that it authenticated as - just as an FTP client
would. This means that all the normal file permission and ownership
Samba can be compiled on every version of Unix supported by Webmin,
and has the same features on all of them. This means that the module's
user interface is the same as well, although differences in the
default configuration may cause some features to be initially
The Samba Windows File Sharing module
This Webmin module allows you to specify directories and printers
to be shared to Windows clients using the SMB protocol. It can

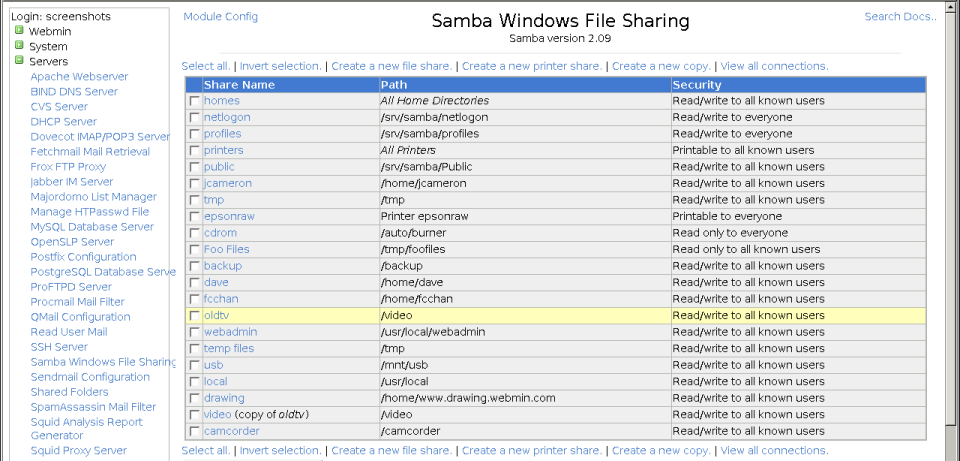

be found in the Servers category, and when its link is clicked
the main page as shown in the screenshot below will be displayed. All
existing shares are listed, along with their paths and the users
that they are available to. Below them are icons for setting various
global options that apply to all shares, links for managing Samba
users and a button for starting or re-starting the server processes.
Over the years, Samba has gained a vast array of configurable
options. This module does not allow you to configure all of them
though, only the ones that are useful for a small server on a simple
network. For example, settings related to login scripts, NT
domains and SSL cannot be edited. However, if you add them to your
smb.conf file manually the module will not modify them.
The Samba Windows File Sharing module
Like all other modules that configure some server, this one can
only be used if the Samba server is actually installed. If the
module cannot find it, an error message like The Samba server executable /usr/sbin/smbd was not found
will appear on the
main page instead. If you do have Samba installed but in a different
location to what the module expects, see the Configuring the Samba Windows File Sharing
module section later in this chapter
for instructions on how to re-configure it to use the correct
paths. Otherwise, you will need to install it.
Most Linux distributions and several other operating systems
include a Samba package or packages, which can be easily installed
using the Software Packages module (covered in chapter 12).
If not, you will need to download the source code from www.samba.org
and then compile and install it manually. The module expects you to
use the package if one is available or the source code otherwise,
so if you did not and an error message is still being displayed
on the main page the module's configuration will need to be adjusted
to use the correct paths.
No matter how Samba is installed, its default configuration
file will include at least two shares (the special homes and printers),
as well as several global settings. This means that even if you
have never used this module before or configured Samba manually,
the list on the main page will not be empty. Of course, if you have
been adding shares by directly editing the configuration file
then they will be displayed as well.
If Webmin detects that Samba is already running, a button labeled
Restart Samba Servers
will be displayed at the bottom of the
page. Predictably, clicking it will kill all running server
processes and re-start them, forcing the current configuration
to be reloaded. This is usually unnecessary though, as Samba
will re-read the configuration files as soon as it detects that
they have been changed.
If the module finds that both of the Samba server processes are
not running it will display the Start Servers
which when clicked will start both smbd and nmbd. No PID file is checked
to determine if they are running or not - instead, the module searches
for running processes with those names.
Managing Samba users
As mentioned in the introduction, the SMB protocol uses a password
encryption format that is incompatible with the standard Unix
format. At one time this was not a problem, as old versions of Windows
(95 and earlier) sent passwords to SMB servers unencrypted.
This allowed Samba to encrypt and verify them against the Unix
password list, just like the FTP or telnet servers do. Unfortunately,
recent Windows releases will only send passwords in the new NTLM
encrypted format unless a particular obscure registry key is
changed. This means that Samba must maintain a separate list
of passwords to validate modern clients.
Unless your server is only going to be accessed by old Windows
hosts or Linux systems, you will need to enable this separate
encrypted password list. The steps to do this are :
- On the module's main page, click on the Authentication icon.
- On the form that appears, change the Use encrypted passwords? field to Yes.
- Click Save at the bottom of the form to return to activate the new setting and return to the module's main page. If it did not appear before, the Encrypted Passwords section containing three links should now be visible.
Now that Samba's separate password list is enabled, you will
need to add some of your existing Unix users to it. This can be done
easily using Webmin by following the steps below :
- On the main page of the Samba module, click on the Convert Unix users to Samba users link in the Encrypted Passwords section to bring up the conversion form.
- The Don't convert or remove these users field lists users that will be excluded from conversion, and by default contains all system accounts. You may want to add others - however, there is no harm in converting accounts that will never be used.
- If you have used this form before, the Update existing Samba users from their Unix details option can be checked to have existing Samba users updated to match the corresponding Unix users.
- Similarly, the Delete Samba users who do not exist under Unix can be checked to have Samba users who no longer have a corresponding Unix user deleted.
- The For newly created users, set the password to field determines the password that will be assigned, as there is no way to convert the users' existing passwords. The best choice is Account locked, which prevents the converted users from being used until a password is set later. You can also choose No password to leave new accounts password-less (a bad idea security-wise), or Use this password to specify a password for all converted users.
- Click on the Convert Users button to begin the process. A page listing each user converted, skipped or updated will be displayed.
After conversion you will probably need to set passwords for
the new Samba users. This must be done one by one, by following
these instructions for each user :
- On the module's main page click on the Edit Samba users and passwords link to bring up a list of existing users.
- Click on the name of the user whose password you want to set.
- In the Password field, select the New password option and fill in the text box next to it. You can also choose No access to block all Samba logins by this user, No password to allow logins without a password or Current password to leave the password unchanged.
- None of the other fields on the form should be changed - just click the Save button to return to the user list.
- You should now be able to login to your Samba server as this user with the chosen password and access files in some share. Assuming that the special homes share exists, every user will have access to the share with the same name as their username.
Because converting and setting the password for each new user
is a tiresome waste of effort, you can configure the module to
automatically create a Samba user for each Unix user created
in Webmin. It is also possible to have a Samba users renamed, deleted
or their passwords changed when their corresponding Unix user account is changed
in the Users and Groups module. The steps to follow to set up this
synchronization are :
- On the Samba module's main page, click on the Configure automatic Unix and Samba user synchronization link in the Encrypted Passwords section.
- On the synchronization form, check the Add a Samba user when a Unix user is added to have a Samba user created with the right UID and password for each new Unix user.
- To have the corresponding Samba user renamed or their password changed when a Unix user is modified, check the Change the Samba user when a Unix user is changed box.
- To have Webmin remove the matching Samba user when a Unix user is removed, check the Delete the Samba user when a Unix user is deleted.
- Click the Apply button to save your settings. Any actions performed in the Users and Groups module (when the in other modules options are used) will modify the Samba user list as well.
Unfortunately, this synchronization only applies to the Users
and Groups, Change Passwords and Cluster Users and Groups modules
in Webmin. If you add a user with the adduser
shell command or
change a password with the passwd
shell command, no Samba user will
be added or updated.
Adding a new file share
In its usual default configuration, Samba will allow any Unix
user to login and access files in their home directory. The special
share provides this feature, which in many cases is all
that you need for users to store their own files on the server.
However, it is often useful to share a directory that everyone
has access to, so that documents of interest to the entire organization
can be made available. A share like this can be set up to allow guest
access (meaning that no login is required to access it), or to
require a valid login to the server.
To create a file share, the steps to follow are :
- First, decide on the directory that you wish to share and create it if it does not already exist. It must be given the appropriate Unix permissions so that users can read and/or write to it.
- On the module's main page, click on the Create a new file share link above or below the table. This will take you to the share creation form shown in the screenshot below.
- In the Share name field, make sure the first button is selected and enter a unique alphanumeric name for your share into the text box, like documents. If you enter the name of a Unix user, his automatic home directory share will be overridden.
- In the Directory to share field, enter or select with the little button the full path to the directory chosen in step 1
- To disable this share so that it cannot be used, change the Available? field to No. This can be useful if you want to take it offline until all the options have been set properly.
- To hide this share from the list of shares that appears when the server is browsed, change the Browseable? field to No. It will still be directly accessible using a \\servername\sharename path though.
- In the Share comment field, enter a short description for this file share, like Corporate documents.
- Click the Create button to add it to the Samba configuration. Your browser will be returned to the module's main page, on which the new share will be listed.
- Click on the new share name to bring up its editing page.
- Click on the Security and Access Control icon to display the share's security form.
- If the files in this share should be read-only, set the Writable? field to No - otherwise, make sure Yes is selected.
- The Guest access? field determines if clients are allowed to access this share without logging in to the server. The available options are : None Only authenticated users will be granted access. Yes Anyone will be allowed to access the share, but unauthenticated clients will be treated as guests. Clients that have logged in will have their normal file access rights. Guest only All clients, authenticated or not, will be treated as guests.
- To set the Unix user that guests read and write files as, change the Guest unix user field. This should normally be an account with read-only access.
- Click the Save button at the bottom of the form. The share is now ready for clients to use, and should show up when your server is browsed.

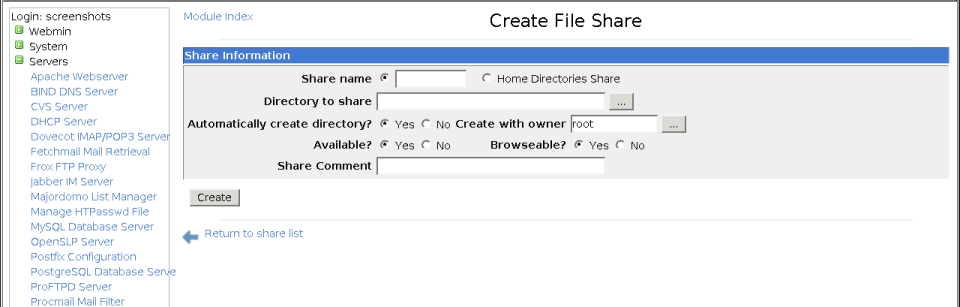

The file share creation form
A share can be edited after creation by clicking on its name in
the list on the module's main page to bring up its editing form,
changing details like the path or description and hitting the
button. Or it can be deleted entirely by clicking Delete
on the same form. You can also edit additional parameters by clicking
on the icons at the bottom of the editing page - later sections
in this chapter explain what they do in more detail.
The homes share can be edited as well, although it does not usually
have a path (or if it does, it will contain the special %U code which
is replaced by the connecting user's home directory).
Adding a new printer share
The default Samba configuration usually contains the special
share, which indicates that all printers on your system
are available to SMB clients. However, a specific printer can
be explicitly shared instead. This may be better than having
them all shared automatically, as it allows you to set different
options for each printer or exclude some from being shared altogether.
Before printing and the browsing of printers in Samba will work
properly, it must be configured to use the right print system
for your Unix box. See the Configuring printers
in the chapter for details of how to set this. If it is set incorrectly
the server will use the wrong commands for listing printers and
submitting jobs, which may cause the automatically generated
list of printers to be empty, or print requests to fail.
To make a printer available to SMB clients, the steps to follow
- On the module's main page, click on the Create a new printer share link above or below the table. This will take you to the print share creation form shown below.
- In the Share name field, make sure the first button is selected and enter a unique alphanumeric name for your share into the text box, like hplaser. This should be the same as the name of the Unix printer you select in the next step to avoid confusion. If an automatically created printer share with the same name already exists, this new one will override it.
- From the Unix printer menu, select the printer to make available to SMB clients. This list is taken from the Printer Administration module (covered in chapter 22). If Default is chosen the print system's default printer will be used.
- To disable this printer so that it cannot be used, change the Available? field to No.
- To hide this printer from the list that appears when the server is browsed, change the Browseable? field to No. It will still be directly accessible using a \\servername\printername path though.
- In the Spool directory field you can enter the name of a directory in which temporary files for printing are stored. Leave it empty to use Samba's default, which will usually work fine.
- In the Share comment field, enter a short description for this printer, such as Office HP Laserjet 5.
- Click the Create button to add the share to the Samba configuration. Your browser will be returned to the module's main page which will now include the new printer in the table.
- Click on the new share name to bring up its editing page.
- Click on the Security and Access Control icon to display the share's security form.
- The Guest access? field determines if clients are allowed to print to this printer without logging in to the server. The available options are : None Only authenticated users will be granted access. Yes Anyone will be allowed to access the share, but unauthenticated clients will be treated as guests. Clients that have logged in will have print jobs submitted under their login names. Guest only All clients, authenticated or not, will be treated as guests.
- To set the Unix user that guests submit print jobs as, change the Guest unix user field. This doesn't matter much, unless your printer system is configured to block certain users.
- Click the Save button at the bottom of the form to return to the printer's editing page.
- Click on the Printer Options icon.
- If this printer is to be used by Windows clients and does not have a Unix driver installed, enter its complete make and model into the Printer driver field. This must match exactly the name that Windows refers to the printer as, so that clients know which driver to install. If None is selected, users adding this printer to their Windows systems will be asked to choose the printer model from a list instead. If the Unix printer selected in step 3 is already set up with a driver, then clients must submit jobs in Postscript format instead of the native data format that the printer uses (because the driver will do the conversion). In this case, you can enter the name of a printer that uses Postscript natively, such as Apple LaserJet? II.
- Finally, click the Save button on this form. The printer share is now ready for use by Windows clients.

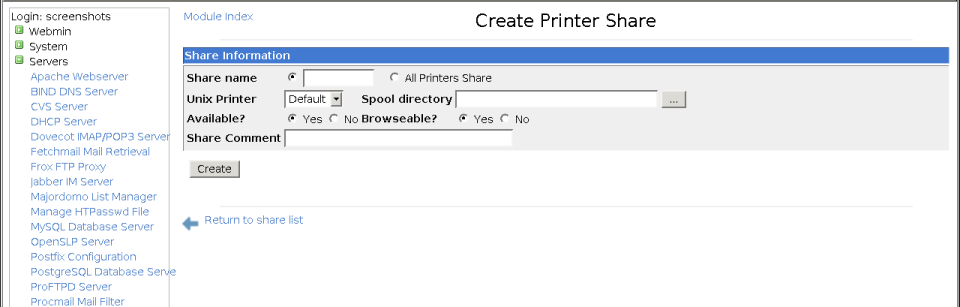

The printer share creation form
Just as with file shares, printers can be edited and deleted
by clicking on their names in the table on the module's main page.
The special printers
share can be modified as well - however,
many options do not make sense to set for it, such as the Unix printer
or Printer driver
Viewing and disconnecting clients
Every client that is accessing a file or printer share on your
system has a connection to the Samba server, and those connections
can be viewed using this module. Clients may also lock files that
they have open for editing, which prevents others from opening
them. One of the server's tasks is the maintenance of these locks,
which are associated with sessions and which you can also view.
If a client crashes without properly disconnecting, any locks
that it holds will remain until the TCP connection times out,
which can take a while. For this reason, the module allows you
to kill client sessions and thus release their locks.
To view and delete client sessions, follow these steps :
- On the module's main page, click on the View all connections link above or below the table of shares to bring up a list of all connections to the server. Alternately, you can click on a printer or file share and then on the View Connections button on its editing page to display a list of only connections to that particular share.
- Either way, the page that appears will list the shares currently in use and for each show the name of the connected user, the host they connected from, the time of connection and any locked files. In the left-most column is the ID of the Samba server sub-process that is handling this connection. Generally, multiple connections from the same client system to different shares will be handled by one process.
- To kill a process and thus break all the connections that it is handling, click on its process ID in the first column. Any locks held by the client will be released, freeing the files for use by others. You should only kill the connections of clients that have really crashed - killing the session for an active client may cause any files that it has open to be corrupted. However, it is generally safe to kill a connection to a Windows client with no files open, as it will be immediately and transparently re-established by the client when a file on the share is next opened.
Editing share security options
Once a printer or file share has been created, you can edit various
security-related options that control who has access to it and
which hosts they can connect from. This can be useful if some shares
contain files that only certain people should have access to,
or if your Samba server is for use by clients only on your internal
To edit share security options, the steps to follow are :
- On the module's main page, click on the name of the share in the table to bring up its editing form, then on the Security and Access Control icon.
- As explained in the Adding a new file share section, the Writable? and Guest access? fields determine if the share can be written to, and if authentication is needed. The Guest Unix user field sets the user that files are read and written as by guest clients. Change them again here if you wish.
- To only allow certain hosts access to this share, select the second radio button in the Hosts to allow field and enter a list of hostnames and IP addresses into the adjacent text box. Partial IPs like 192.168.1. or network addresses like 192.168.1.0/255.255.255.0 can be use to allow an entire network. If your system is a NIS client, you can enter a netgroup name preceded by an @ (like @servers) to allow all of the group's members. If All is selected, all hosts will be granted access, unless you fill in the next field. No matter what you enter, connections from the local host (127.0.0.1) are always allowed unless it is specifically listed in the Hosts to deny field.
- To block specific hosts from accessing this share, fill in the Hosts to deny field with a similar list of hostnames, IP addresses, networks or netgroups. If both fields are filled in, Hosts to allow takes precedence. If None is selected, all hosts will be permitted.
- To allow only certain users to access this share, fill in the Valid users field with a space separated list of usernames. You can also fill in the Valid groups field with a list of groups whose primary and secondary members will be granted access. Only if both lists are empty will all users be allowed.
- Alternately, to deny specific users and members of groups, fill in the Invalid users and Invalid groups fields. If a user appears in both the valid and invalid lists then they will be denied access.
- To restrict some users to read-only access for this share, enter a list of usernames into the Read only users field. You can also enter a list of Unix groups in the Read only groups to restrict their primary members. Everyone else will have full read/write access, assuming that the share is actually writeable and that the Read/write fields have not been filled in.
- To give only certain users permission to write to the share and restrict everyone else to read only access, enter a list of usernames into the Read/write users field. As usual, the Read/write groups field can be used to enter a list of groups whose primary members will be allowed to write as well. Naturally, normal Unix file permissions that may be prevent writing to files or directories still apply to all users. If a user appears in both the Read only and Read/write lists, he will be allowed to write. The fields in this and the previous step have no effect on printer shares. Instead, all allowed users will be able to print.
- When you are done editing file security options, click the Save button at the bottom of the page to activate the new settings.
As well as setting security options for a single share, you can
set defaults for all shares that will apply unless overridden
in individual shares. To do this, click on the File Share Defaults
icon on the module's main page instead of the name of a share, and
then on Security and Access Control
. Some settings like the
lists of hosts to allow or deny really should be set globally,
as you probably want to limit access to your entire server to just
a trusted network. See the Editing share defaults
later in the chapter for more information on how defaults work.
Editing file permission settings
File shares have several settings related to the Unix permissions
and ownership of files within them that can be set globally or
on a per-share basis. Because Windows clients and the SMB protocol
have no concept of permissions, it is useful to have a way to set
the defaults for new files and directories on a per-share basis.
The steps to do this are :
- On the module's main page, click on the name of the share that you want to set permissions for, then on the File Permissions icon on its editing page.
- In the New Unix file mode field, enter the octal permissions (as used by the chmod command) that should be assigned to newly created files. For example, mode 600 would allow reading and writing by the owner but completely deny access to anyone else.
- In the New Unix directory mode field, enter the octal permissions for newly created directories. For example, 755 would allow listing and reading by everyone, but only allow the owner to create files in the directory.
- To make some directories always appear empty to SMB clients, enter a comma-separated list of full paths into the Directories not to list field. For example, you might enter /proc,/dev to hide the contents of those two directories, which are generally useless to Windows clients.
- To force all clients to access files as a specific Unix user (instead of the user they logged in as), fill in the Force Unix user field. This can be very useful for a share in which different people edit each other's documents, as it avoids the Unix permission problems that can occur if files are actually owned by their creators. By default, the group that files are accessed as will be the primary group of the specified user. To change this, fill in the Force Unix group field as well.
- Because Windows SMB clients have no support for Unix symbolic links, Samba will always read or write the linked-to file when a client tries to read or write a link. Unfortunately, this presents a potential security risk, as a symlink could be created that points to a normally inaccessible file outside the shared directory. To prevent this, change the Allow symlinks outside of share? field to No.
- On Unix filesystems, files that are read-only to a user can still be deleted if the directory is writeable. This is not the case on normal Windows filesystems though, which is why Samba prevents it from happening. To change this and let Unix filesystem semantics apply, change the Can delete readonly files? field to Yes.
- Click the Save button at the bottom of the page to activate the new file security options.
As the Editing share defaults
section explains in more detail,
you can edit file permission settings for all shares by clicking
on the File Share Defaults
icon on the main page, followed by
. These will apply unless overridden for
a share by the instructions above.
Editing file naming options
Samba has several options that control how Unix filenames are
converted to names suitable for Windows systems. These days,
most of them are no longer needed, as Windows versions 95 and above
have been able to support long filenames properly. Only Windows
3.1 and DOS were stuck with the old 8.3 filename format, and they
are hardly used anymore.
To edit the naming options for a share that are relevant to modern
clients, follow these steps :
- Click on the name of the share on the module's main page, then on the File Naming icon.
- When the Case sensitive? field is set to No, the server will ignore case when opening files requested by clients. This is the way Windows filesystems work and so this is the default behavior for Samba as well. However, it does consume more CPU time and IO bandwidth due to the need to scan directories, as all Unix filesystems are case sensitive. For this reason, you may want to select Yes instead if all your clients are Linux systems that expect normal the Unix case rule to apply.
- Normally, Samba will create files with the exact case specified by clients. To change this and force the use of upper or lower case instead, change the Preserve case? field to No and select one of the options in the Default case? field. This can be useful if Windows clients are creating lots of upper-case files when you prefer to follow the normal Unix lower-case standard.
- On Windows filesystems, each file has a hidden attribute that determines if it is normally visible to programs or not. No such attribute exists on Unix systems - instead, files whose names start with a dot are hidden by ls and other commands. For this reason, Samba sets the hidden attribute on dot files when the Hide dot files? field is set to Yes, as it is by default. The alternative is to use the world execution bit of the Unix file permissions as the hidden flag, as execute permissions are not otherwise used by Samba. To enable this behavior, change the Save DOS hidden flag? field to Yes. Because this will mess up permissions for Unix programs accessing files in the share, it should only be used if the shared directory is only being accessed by SMB clients.
- Windows files have two more attributes - the archive flag which indicates that a file has been backed up, and the system flag which marks a normally untouchable system file. Samba can be configured to store these attributes in the user-execute and group-execute bits of files if the Save DOS archive flag? and Save DOS system flag? fields are set to Yes respectively. If your Windows clients have no need for this information or if you find that permissions on Unix executables and scripts are being messed up, set them both to No instead.
- To activate the new file naming settings, hit the Save button at the bottom of the page.
Again, these options can be set for all shares by clicking on the
File Share Defaults
icon on the main page, followed by *File
Editing other file share options
There are a few more file share options related to locking and
automatically run commands that you can set using this module
as well. Those used for locking control the behavior of Samba
when a Windows client tries to lock a file to gain exclusive access,
so that it can cache data in the file without having to contact
the server for every read or write. By default, locking is fully
enabled and implemented in exactly the same way as it is on Windows
servers, so there is generally no need to change these settings.
Samba can also be configured to run shell commands when a client
connects or disconnects, either as root or as the connecting
Unix user. This can be useful if you want to move newly added files
to some other directory or perform some kind of processing on
To edit the module's other file sharing options, follow these
- Click on the name of the share to edit on the main page, and then on the Miscellaneous Options icon on the share editing page that appears.
- If this share is exclusively for read-only use (for example if you are sharing some kind of read-only media like a CD), then the Fake oplocks? field can be safely changed to Yes to boost performance. This tells Samba to simply grant all lock requests by clients and not to bother actually keeping track of who has locked what, which can boost performance. None of the other locking fields should be touched unless you really know what you are doing, as the defaults will work fine and any other settings may lead to data corruption if multiple clients try to access the same files.
- To limit the number of clients that can be connected to this share at any one time, select the second radio button in the Max connections field and enter a number into the adjacent text box. This can be useful if you want to limit the load on your system. If Unlimited is selected, no maximum will be placed on the number of concurrent connections.
- The fields Command to run on connect and Command to run on disconnect allow you to enter shell commands that will be run by Samba as the authenticated user at connection and disconnection time. They will always be run in the share directory, and special % codes like %U for the connecting user or %S for the server name can be used in the command.
- Similarly, the Command to run on connect as root and Command to run on disconnect as root fields can be used to enter shell commands that will always be run as the Unix root user. However, they will be run in root's home directory instead.
- Hit the Save button to activate the new locking and command settings.
One thing to remember about locking and Samba is that locks taken
out by SMB clients will not generally effect or be detectable
by Unix programs or NFS clients. This means that data corruption
can still happen if Unix and Windows programs open the same file,
or if the same NFS exported directory is shared by two different
Editing printer share options
Once a printer share has been created, there are several options
that you can set for it. Most of them relate to the commands that
Samba will run to print a new job, list the queue or cancel a job.
By default, appropriate commands for the print system in use
(explained in the Configuring printers
section) will be used
- however, there are times that you will want to specify additional
parameters or even use a completely different command.
To edit printer options for a share, follow these instructions
- On the module's main page, click on the name in the table of the printer share that you want to edit. On the form that appears, hit the Printer Options icon at the bottom of the page.
- To prevent clients using up all the disk space in the printer's spool directory with large jobs, change the Minimum free space field. You must enter a number of kilobytes that will always be left free on the filesystem.
- To change the command that Samba will run to print a submitted file, edit the Print command field. The special codes %f (for the temporary file to print) and %p (for the printer name) can and should be used in the command, so that you can enter for example something like lpr -P%p %f ; rm %f. Your command must always delete the temporary file (as the example does), as the server will not do this for you. All the usual shell meta-characters like ;, & and > can be used, which allows you to enter quite complex series of commands. Whatever command you enter will always be run as the Unix user connected to the printer share.
- To edit the command that Samba uses to list jobs waiting to be printed on some printer, select the second radio button in the Display queue command field and fill in its text box. Whatever you enter must produce output in the format generated by the standard BSD lpr command so that Samba can parse. If the special code %p appears in the command, it will be replaced with the name of the printer.
- Similarly, you can change the commands that Samba runs to delete, pause and un-pause a print job by editing the Delete job command, Pause job command and Unresume job command fields respectively. All can and should use the codes %p for the printer name, and %j for the job ID. For most print systems, there are no defaults for the pause and un-pause commands as those features are not supported. Generally you will not need to change these fields.
- As the Adding a new printer share section explains, the Printer driver field can be used to enter the model of the attached printer (as recognized by Windows) so that clients can automatically select the right driver.
- When you are done with this page, hit the Save button to update the Samba configuration file and thus activate the new settings.
You can also edit these settings for all shares by clicking on
the Printer Share Defaults
icon on the module's main page and
then on Printer Options
. In fact, all of the command options
make much more sense to edit globally as the same commands are
likely to be needed for all printers.
Editing share defaults
As the previous few sections in this chapter have mentioned,
the Samba configuration allows you to define defaults that apply
to all shares unless specifically overridden. This can be done
by clicking on either the File Share Defaults
or Printer Share Defaults
icon on the main page, editing the contents of the form
that appears and hitting Save
. However, most of the options
in this form are not particularly useful to set globally, except
More usefully, you can click on one of the icons on the defaults
page and change settings that will apply to all file or printer
shares. In the case of the Security and Access Control
(which appears on both pages), and global defaults that you set
will apply to both file and printer shares, as Samba does not differentiate
Any option that is set globally will appear as the default on per-share
forms. For example, if you fill in the Delete job command
under Printer Options
on the Printer Share Defaults
and then went to the same page for a specific printer, the same
value would appear. Even though the command does not actually
appear in the configuration file for the printer, Webmin still
displays it because as the default it will be used. Of course,
if you enter a different command for the share, it will override
the global setting and thus be used and display instead. This
behavior may be a little confusing, as it is not the way that other
Webmin modules usually work.
This module can be used to set various Samba options that control
how the entire server appears to and behaves for Windows clients.
You can change the workgroup (under which the system is listed
in the network neighborhood display), the server's name and
any aliases, and the description that appears next to the name.
Options related to the file sharing protocol and authentication
method used can also be edited, in order to support old clients.
It is even possible to set up your system as a WINS server or client,
a protocol that some Windows clients use to find IP addresses
for SMB server names if DNS is not available. The biggest difference
between WINS and DNS is that clients can register their own names
and IP addresses with a WINS server, rather than having it done
by an administrator. It is most useful on small file-sharing
networks that do not have a DNS server.
To edit these windows networking options, the instructions
to follow are :
- On the module's main page, click on the Windows Networking icon in the Global Configuration section to bring up the form shown in the screenshot below.
- To set a workgroup for your server, select the second radio button in the Workgroup field and enter a short name into the text box next to it. If your network already has a few SMB servers that are members of a workgroup, this server should be made a member too.
- If your network already has a WINS protocol server, select Use server in the WINS mode field and enter its IP address. If not, you should choose Be WINS server so that Windows clients can use your system to lookup IP addresses for SMB server names. More recent versions of Windows (and Linux clients) do not need to use WINS, as they can look up server names in the DNS - assuming your network has a DNS server that has entries for all your hosts.
- To set a description for your system, fill in the Server description field with something like Corporate file server.
- Normally, Samba will use the first part of your system's DNS name as the SMB server name. To change this, enter something else in the Server name field. Clients will be able to refer to this server by whatever name you specify.
- To define alternate names that clients can use to refer to your server, fill in the Server aliases field with a space-separate list of names.
- If you want your system to be the master browser for a network (the server that maintains lists of other SMB servers and clients on the network, as seen in Window's network neighborhood), change the Master browser? field to Yes. If you are running multiple Samba servers on the same subnet, this option should be set for only one. If there are other Windows or Samba servers on the network that want to be master browsers, the one with the highest operating system level will win the 'election' that decides who gets the job. You can increase your system's change of winning by increasing the Master browser priority field - the default of 20 will win against Windows 95 systems, but you would need to enter 65 to beat Windows NT servers.
- To have your Samba server contact another SMB server to validate passwords instead of checking its own user list, select Password server from the Security menu and enter the other server's hostname or IP address in the Password server field. Otherwise, leave the field set to Default or User level. Share level security is rarely used anymore with modern clients, and Domain security is too advanced to cover in this chapter.
- Normally, an SMB server broadcasts information about itself to other servers on the network so that it can be included in browse lists. However, if your network spans multiple subnets then broadcasts from one system may not reach others. To get around this problem, the Remote announce to table can be used to specify the addresses of browser master servers to which this server's IP address and workgroup should be sent. To configure remote announcements on this page, first select the From list option above the table. Then in the IP address field of each row enter the hostname or IP address of a server to announce to, and in the As workgroup field the name of the workgroup that your server should appear under. If the second field is left empty, the servers real workgroup (set in step 2) will be used. To enter more than two remote servers you will need to save and re-open this page so that more empty rows appear in the table.
- Finally, click the Save button to activate the new networking settings.
The windows networking options form
Samba also has numerous global options related to networking
that control such things as the IP address to listen on, whether
to send keep-alive packets and how long clients can be idle for
before they are disconnected. These can be used to tune your server's
performance, or limit access to only clients on a local network.
To edit them, follow these steps :
- Click on the Unix Networking icon on the module's main page.
- To have Samba disconnect clients that have been inactive for too long and do not have any files open, select the second radio button in the Idle time before disconnect field and enter a number of minutes into the adjacent text box. If Never is selected instead, clients will never be automatically cut off. Because Samba starts one server sub-process per client, this feature is useful for cutting down the amount of memory that they use up. And Windows clients will automatically re-connect if disconnected, so there is no down side to using it.
- To have Samba send packets to detect if clients have crashed without properly disconnect, select the Send every option in the Keepalive packets field and enter the number of seconds (such as 60) that a packet should be sent. Because clients can hold locks on files, a dead client may end up locking a file that other people need access to, even though it is clearly not using it. The same thing can be achieved by selecting the SO_KEEPALIVE checkbox in the Socket options field. This tells the operating system kernel to do basically the same thing, and so should be used in preference. The only problem is that you cannot specify the keep-alive packet interval.
- To restrict Samba to listening for connections on a single one of your system's IP addresses, fill in the Listen on address field. On a machine with one interface connected to an internal network and one connected to the Internet, this feature can be used to prevent outsiders connecting to your Samba server.
- Hit the Save button at the bottom of the page to activate the new network settings.
As you will see when you look at the actual form, there are many
more fields on it than those documented above. However, the rest
have extremely specialized uses and thus do not need to be touched
by the average administrator.
The SMB protocol allows users to change their passwords for a
server from a client system. For a Samba server, this causes the
encrypted passwords file to be updated, assuming one is in use
(as is usually the case). You can also configure the server to
change the user's Unix password as well, which makes sense if
they are being kept synchronized.
Another authentication-related feature supported by Webmin
is username mapping. This allows you to map fake client login
names to real Unix usernames, and can be useful if users prefer
to use their full names to login (like Jamie Cameron
) or if you have a client that is regularly moved
between two different networks, each of which has different
To set these global authentication options using this module,
the steps to follow are :
- On the module's main page, click on the Authentication icon.
- As explained in the Managing Samba users section, the Use encrypted passwords? field determines if Samba uses its own separate password file or the standard Unix user database. Because all recent versions of Windows use a password encryption format that is incompatible with the Unix format, this field should generally be set to Yes.
- To allow logins by users who have no password set, select Yes for the Allow null passwords? field.
- The Password program field sets the program that Samba will use to change a user's Unix password if synchronization is enabled. If Default is selected /bin/passwd will be used, which is correct for most Unix systems. You can enter a different command by selecting the second radio button and fill in the text box with something like /usr/bin/yppasswd %u. The %u code is replaced with the name of the user whose password is being changed, and is required because the command is run as root.
- To have same change a user's Unix password when his SMB password is changed over the network, set the Change Unix password as well? field to Yes. Synchronization in the other direction is unaffected though - see the Managing Samba users section for more details on how that works.
- To define 'fake' SMB accounts, select Listed below in the Username mapping field. In the table below it, each row specifies a mapping - the first field must contain a valid Unix username, and the second an SMB login name of your choice. Clients logging in with one of these made-up account names must of course provide the correct password for the associated Unix user.
- Hit the Save button at the bottom of the page to activate your new authentication settings.
If you are sharing printers from your server, you will probably
need to adjust the global printing options. These determine
the print system commands that Samba will use to submit, list
and delete jobs, the file it gets the list of printers from, and
other related settings. To edit them, the steps to follow are
- Click on the Windows To Unix Printing icon on the module's main page to bring up the printer options form.
- From the Unix print style menu select the type of print system in use on your box. Unfortunately, practically every different flavor of Unix has its own set of programs and configuration files for handling printers and print drivers, each of which must be treated differently by Samba. The options that you may want to select from are :
- BSD The traditional Unix print software, found on FreeBSD? , NetBSD? and older Linux distributions.
- SYSV The print system used on Solaris, UnixWare? and a few other versions of Unix.
- HPUX The print system shipped with HP/UX.
- AIX The print software that comes with AIX, IBM's version of Unix.
- CUPS The superior Common Unix Print System, which is included with many new Linux distributions.
- LPRNG An improved version of the old BSD print system, used on all Linux systems that do not run CUPS. Most packages of Samba will have this option set correctly in the default configuration file. The PrinterAdministration page explains in more detail what the differences between the various print systems are, and how to select the right one for your operating system.
- Normally, Samba will find all the printers on your system and make them visible to clients when the special printers share exists. To disable this, change the Show all printers? field to No instead. The printers will still be accessible using an explicit \\_servername_\_printername_ path though.
- When the Printcap file field is set to Default, Samba will get the list of printers available on your system from the standard /etc/printcap file. This is fine if you want them to all show up, but sometimes you want to hide some printers from users. To do this, create a fake printers file that looks like : printer1|Description for printer 1: printer2|Description of second printer: And set this field to the path to this file. Only the printers listed in it will be available automatically when a printers share exists.
- Samba caches the output from whatever command is used to list waiting print jobs (such as lpq) in order to reduce the frequency with which it is run. By default this cache time is 10 seconds, but you can increase or decrease it using the Printer status cache time field. If your lpq command is very slow you may want to increase it.
- Hit the Save button to activate your new printing settings.
Accessing SWAT from Webmin
SWAT (which stands for Samba Web Administration Tool) is a program
similar to Webmin's Samba module, but included as standard with
Samba itself. It provides a web-based administration interface
to the configuration file that allows you to create and edit shares
and global settings. SWAT is usually run from a super-server
like inetd or xinetd, which makes it appear as a web server, usually
on port 901. Most Samba packages for Linux include the program
and an xinetd service for it, but have it disabled by default.
You can also access SWAT through this Webmin module, instead
of needing to set it up to be run from inetd or xinetd. Unfortunately,
this will not work if Samba has been configured to only allow connections
from some IP addresses (using the Hosts to allow
field) on the
global Security and Access Control
page. Because SWAT also
uses Samba's configuration files, any IP restrictions that
apply globally will apply to it as well. When it is run from Webmin,
SWAT is unable to determine the connecting IP address and fails
if any IP restrictions are in force.
Assuming that this is not the case on your system, you can use it
by following these steps :
- On the module's main page, click on the SWAT icon. If this is the first time you have done so, the SWAT Login form will appear.
- If you do get the login form, enter root in the Username field and the root user's password in the Password field. Because it can be used to totally re-configure your Samba server, SWAT requires users to authenticate first. Webmin will remember the login and password that you enter so that the login form will be bypassed in future.
- After you have logged in the SWAT main menu will appear. Along the top are icons for various parts of the Samba configuration, which when clicked on bring up forms for editing settings. Some things that can be configured in Webmin cannot be in SWAT, and vice versa - so you may find it superior to the Webmin interface for some tasks.
- To return to the module's main page, click on the Return to share list link at the bottom of any page. To have Webmin forget your SWAT password so that you can login again, hit the Logout of SWAT link in the bottom-right corner.
Be aware that when you login to SWAT through this module, the username
and password that you enter are stored un-encrypted in the file
/etc/webmin/samba/swat which is readable only by root. If this
bothers you for security reasons, either do not use this feature
of the module, or remember to click the Logout of SWAT
you are done using it so that the window of exposure is limited.
Module access control
explains, once a Webmin user has been granted access
to a module he can be further restricted to only a subset of its
functions. For the Samba module, you can allow a user to edit only
certain types of settings in certain shares while denying him
the ability to create new shares or edit global options. This
can be useful if you want to let someone edit the settings that
apply to the sharing of only his own directory, while protecting
the rest of the Samba server's configuration.
I would advise against granting even limited access to this module
to un-trusted users though, as it has many features that could
be used by a malicious to gain root access to your system. For example,
someone could allow guest access to a share with root permissions,
allowing the remote modification of any file. Or they could set
the command run as root at client connection time to something
that changes the root password.
Instead, these access control features are should only be used
to limit the changes that an in-experienced but still trusted
user can make. To restrict such a user to only editing a few shares,
the steps to follow are :
- In the Webmin Users module, create a user with access to the module, or modify an existing user to give him access.
- Click on Samba Windows File Sharing next to the name of the user to bring up the module access control form.
- Change the Can edit module configuration? field to No.
- Set all the fields from Can apply changes? *down to *Can maintain auto UNIX to SAMBA users sync? to No as well, as they control access to global settings that the user should not touch.
- To hide shares that he cannot access from the user, change the Hide inaccessible objects? field to Yes. Leaving it set to No lets him see other shares, but if he tries to click on any of them an error message will appear.
- In the Access file shares field, de-select create but leave read and write selected. Do the same for the Access print shares field. This does not mean that he can edit all shares - later fields control exactly which ones he can configure.
- Change the Enable per-file_share acls? and Enable per-print-share acls? fields to Yes, so that the options set in the next step are used.
- In the Per-share ACLs table, select n/a under Access share and Connections for all the shares that he should not be allowed to configure. You should definitely do this for the global share as well, as it sets the defaults for all others. For the shares that you do want the user to manage, select read write in the Access share column. To allow the user to kill clients connected to this share, select kill in the Connections column - or to let him only see connected clients, choose view instead. The former option is not a good idea security-wise though, as it allows the user to terminate any process on your system. The radio buttons in the security, permissions, file naming and miscellaneous or printer columns control which of the sub-icons on the share editing form the user has access to. For each you can choose either edit to allow editing, view to only let him look at the settings or n/a to deny access altogether.
- Hit the Save button at the bottom of the page to activate the new access control settings.
Configuring the Samba Windows File Sharing module
The module assumes that you have installed the Samba package
available for your operating system or Linux distribution,
or have compiled Samba from source code if no such package is available.
If this is not the case (for example if you have compiled the latest
version instead of using a package), the paths that it uses for
the Samba programs and configuration files will be wrong. This
will cause the module's main page to incorrectly display an error
message about Samba not being installed.
Fortunately, these paths can be easily changed by clicking on
the standard Module Config
link in the top-left corner of the
main page. On the form that appears if you follow this link are
fields that control the module's user interface (under *Configurable
options*) as well as the fields for configuration file and program
paths (under System configuration
). The first group of settings
can be safely changed at any time, but those that set paths do not
generally need to be adjusted as the defaults are usually correct.
