DHCP Server Configuration
This page explains what DHCP is and how to use Webmin to set
up a DHCP server on your network so that other systems can obtain
IP addresses automatically.
Introduction to the Dynamic Host Configuration Protocol
DHCP is a protocol that allows hosts to request and be assigned
an IP address on a local area network. It is used to simplify
the process of IP address assignment, as a single server can manage the
addresses of multiple clients. It is also useful for systems
such as laptops that are moved between multiple networks, as they
do not need to be re-configured for each LAN that they connect
DHCP is usually used on Ethernet networks, although it can be
used on any type of LAN that supports broadcast traffic such as
802.11 and token ring. It is not used for address assignment for
dial-up connections or ADSL - the PPP protocol has its own method of assigning
clients their IP addresses. Because broadcasts are not normally
forwarded by routers, a DHCP server can only assign addresses
to hosts on a single LAN - unless you have a router that is configured
to forward DHCP packets.
A DHCP server can also supply other information to clients in
addition to an IP address. The addresses of DNS servers and the
network gateway can be sent, along with the DNS domain, NIS server,
NIS domain, static routes and much more. DNS and routing information
allows clients to fully integrate themselves into the network
they are connected to without needing any manual configuration.
When a server assigns an IP to a client, it is given a lease on that
address for a certain amount of time, during which no other client
will be assigned the same address. When the lease expires the
client must contact the server again. Typically it will be assigned
the same IP address as before, and the lease will be extended for
the same time period. If a client does not contact the server when
its lease is up the server assumes that the client has been shut
down, and marks the address as available for assignment to other
Most operating systems include support for configuring a network
interface to use DHCP to get its IP address. Chapter 16 explains
how to set it up for Linux systems, and it is relatively simple
to configure Windows and MacOS?
clients to use it as well. DHCP
has become the standard protocol for address assignment on IP
networks, replacing the older BOOTP protocol used by some Unix
The ISC DHCP server
The most common DHCP server for Unix system is the ISC server,
of which several versions have been released. The latest is version
3, but version 2 is still in common use. Release 1 uses a very different
configuration file format to later versions, and is not seen
much any more. The ISC DHCP server supports a wide range of options,
and can be configured to behave differently for different clients,
networks and address ranges.
The ISC server can be used to assign fixed addresses to hosts,
or addresses from certain ranges. Every host is identified by
its MAC addresses, which on an Ethernet LAN is the address of the
host's Ethernet card. A static IP address and other options can
be associated with a particular hardware address, which allows you
to fix the address that certain systems receive while using dynamic
allocation for others.
The server's configuration file contains four different types
of entries, that contain options that effect different clients
- Subnet A subnet is an entire IP network, such as 192.168.1.0. Entries of this type are used to dynamically allocate addresses within certain ranges to clients within the network.
- Shared network A shared network is a group of subnets that share the same physical network.
- Host A single client host, identified by its MAC address and assigned a fixed IP address.
- Group A group of hosts for which the same options can be set.
Entries in the server configuration are arranged in a hierarchy
that determines what client options and other settings apply
to a particular client. Options in higher-level entries are
overridden by those lower in the hierarchy, which allows an administrator
to avoid repeating configuration information while still being
able to set individual options for specific hosts.
The ISC DHCP server's primary configuration file is called dhcpd.conf,
and can usually be found in the /etc directory. Other configuration
files can be included by the primary file, but on most systems
only dhcpd.conf is used. The only other file used by the server
is dhcpd.leases, which contains all granted leases and is always
kept up to date. Whenever the server is started, it re-reads this
file to find out which leases are currently active. This means
that there is no danger of lease information being lost if the
server is stopped and re-started, which is necessary for it to
re-read the primary configuration file.
Webmin's DHCP Server module directly updates the configuration
and lease files when you manage subnets, hosts, groups and leases.
To activate the current configuration, it kills the server process
and re-runs it, as there is no way to signal the server to re-read
its configuration file.
The DHCP Server module
This module can be used to set your system up as a DHCP server so
that clients on your LAN can be automatically assigned IP addresses,
DNS servers and other information. If there is already a server
on your network, setting up another one is a bad idea as they may
interfere with each other. If you just want to configure your
system to obtain its own IP address via DHCP, then there is no need
to set up a server - instead, see the Adding a network interface
section of NetworkConfiguration
The DHCP Server module can be found in Webmin under the Servers
category. Clicking on its icon will take you to the main page,
which lists all existing subnet, shared network, host and group
configurations. The screenshot below shows an example. However, if this
is the first time that you have used the module and the server has
not been configured manually, then the page will probably be
At the bottom of the page are buttons for editing global settings,
and for displaying current dynamic address leases. Below them
is the Start Server
or Apply Changes
button, which either
starts the server if it is not running, or re-starts it to force
a reload of the configuration if it is. However, you cannot start
the server until at least one valid subnet has been defined.
The DHCP server module
If the ISC DHCP server is not installed on your system, the main
page will display an error message notifying you that the dhcpd
program could not be found. All Linux distributions include
a DHCP server package on their CD or website, which you will need
to install before you can use the module. Make sure that the package
you add is called dhcpd or dhcp-server, as there is often a separate
package for the DHCP client programs.
The same error can also appear if the server is installed, but
in a location other than the one that the module expects. This
can happen if you have compiled and installed it yourself from
the source code, rather than using your distribution's standard
package. If so, you will need to adjust some of the paths explained
in the section called Configuring the DHCP Server module
Because this module only supports the configuration of ISC DHCP
server versions 2 and 3, the main page will also display an error
message if it detects that version 1 of the server is installed.
Unfortunately, this older release uses a totally different
configuration file format and so is not supported by the module.
Some operating systems (such as Solaris) include this older
version by default, but it can be replaced by the latest one.
The ISC DHCP server is also available for several other Unix operating
systems in addition to Linux. Because it works the same on all
of those systems, the behaviour of this module is identical as
well. The only differences are the default paths that it uses
for the server configuration files and programs.
- On some operating systems and Linux distributions, the DHCP
server package includes a sample configuration file that defines
several hosts and subnets. These are not going to be of much use
for your network, and will probably prevent the server from working
at all as they do not match its actual network interfaces. For
this reason, it is best to simply delete them before setting up
your own configuration.
Once a few entries have been added to the server configuration,
the main page displays a table of icons networks under the heading
Subnets and Shared Networks
. Each icon represents either
a subnet (shown with its network address under it), or a shared
network (shown with its name). By default, subnets are listed
first followed by shared networks, and both lists are in the order
that they appear in the configuration file. If you have a complex
DHCP configuration, you can change this by clicking on one of
the following links next to Display nets and subnets by
- Assignment The default sorting mode - subnets are shown before shared networks, and both are listed in the order that they appear in the configuration file.
- File structure Subnets are listed after the shared networks that they are part of, which are sorted by their order in the configuration file.
- Name/IP address Subnets are listed sorted by IP address, followed by shared networks sorted by name.
In the bottom part of the page is a table of icons with the heading
Hosts and Host Groups
. An icon is shown for each host or host
group, with the name or number of members displayed beneath it.
Because many servers have a large number of hosts, you can control
the order that they are displayed in by clicking on one of the following
links next to Display hosts and groups by
- Assignment Hosts are listed before groups, and both are in the same order that they appear in the configuration file.
- File structure Hosts are listed after the groups that they are part of, which are sorted by their order in the configuration file.
- Name Hosts are listed sorted by name, followed by groups in the order that they appear in the configuration file.
- Hardware address Hosts are listed sorted by MAC addresses, followed by all groups.
- IP address Hosts are listed sorted by their fixed IP address, followed by all groups.
Changes to the sorting modes will be remembered by the module,
so that they will be used every time you visit the main page from
Adding and editing subnets
In the simplest DHCP server configuration, all you need is a single
subnet entry to hand out IP addresses within some range to clients
on a single LAN. The server allows you to do much more than that,
but for many networks this is all that is needed (unless you want
to assign fixed addresses to some hosts, or have multiple IP networks
on the same LAN).
To add a new subnet entry, the steps to follow are :
- On the module's main page, click on the Add a new subnet link in the Subnets and Shared Networks section. This will take you to the page shown in the first image below.
- In the Network address field, enter the address of your local LAN such as 192.168.1.0. This must be a network that your system is connected directly to.
- In the Netmask field, enter the mask for the local LAN such as 255.255.255.0. The best way to find the correct network address and netmask is to use the Network Configuration module to look at the settings for your Ethernet interface.
- The Address ranges section is actually a table for entering multiple ranges, but only one blank row is displayed at a time. In the first field, enter the starting address for the range of IPs that you want assigned to clients, such as 192.168.1.100, and in the second enter the ending address for the range, such as 192.168.1.150. Both addresses must be within the network, and the first must be lower than the second. To add more than one range, you will need to re-edit this subnet after saving so that a new blank row appears in the table. The server will always assign addresses from the start of the first range up to the end, then go on to the second and any subsequent ranges. Because each client must have a unique IP, make sure that your ranges are big enough to support all the client hosts that may be connected to the network at any one time.
- If you want this subnet to be part of a shared network (explained in the Adding and editing shared networks section), select it from the Shared network menu. Otherwise, choose to have the subnet created outside of any shared nets.
- To set the lease length for clients on this network, change the Default lease time from Default and enter a number of seconds into the field next to it. This will be the length of the lease for hosts that do not explicitly request one. You should also set the Maximum lease time field, so that clients cannot request a lease longer than the specified number of seconds. If not set, then there is no upper limit on lease length.
- Unless the client systems on your LAN will be network booting from another server, the Boot filename and Boot file server fields can be left set to Default. Only diskless workstations need to do this.
- The Server name field is for entering the network hostname of your DHCP server system. Usually this can be left set to Default, in which case the server will work it out automatically.
- Click the Create button at the bottom of the page. An new entry for the subnet will be added to the server's configuration, and you will be returned to the module's main page.
- Click on the new icon for the subnet, which will take you to an editing form that is almost identical to the creation page.

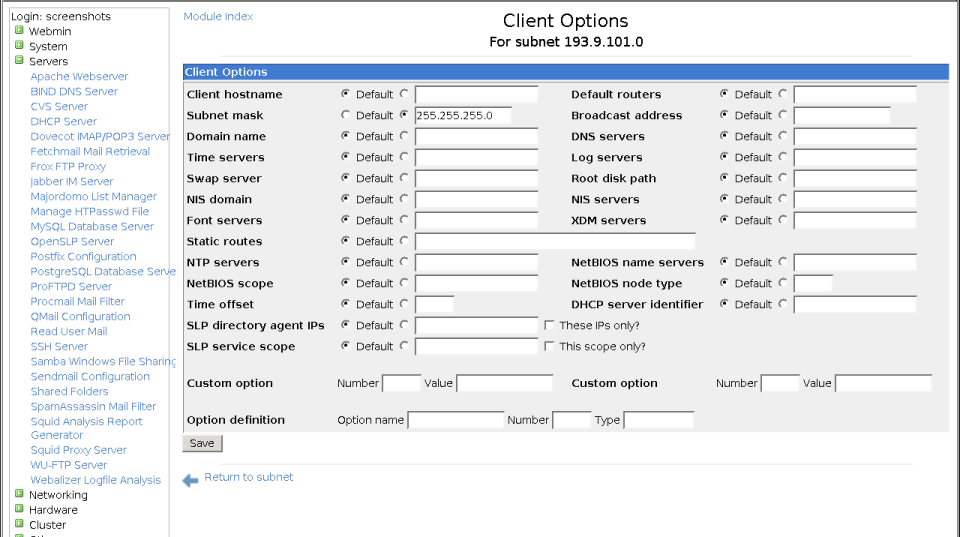

- Click on the Edit Client Options button to go to a page listing information that will be sent to clients, as shown in Figure
- -4. All of the fields have a Default radio button, which if selected typically indicates that no information related to that option will be sent to clients.
- Fill in the Default routers field will the IP address of the default gateway on your network, such as 192.168.1.1. This will be used by clients that have their address assigned by DHCP to communicate with systems outside the network.
- Fill in the Subnet mask field with the netmask for your network, such as 255.255.255.0.
- Enter the broadcast address for your network into the Broadcast address field, such as 192.168.1.255.
- Fill in the Domain name field with the DNS domain name such as example.com that clients should append to partial hostnames.
- In the DNS servers field, enter a space-separated list of DNS server IP addresses that clients can use, such as _192.168.1.104
- If you are running NIS (covered on NISClientAndServer? ) and want clients to connect to an NIS server at boot time, fill in the NIS domain field with the name of your NIS domain, and the NIS servers field with the IP address of your NIS master or slave server. This is only useful if the client hosts are capable of getting their NIS settings from DHCP.
- If you have Windows clients and are running a Samba or Windows server, fill in the NetBIOS name servers field with the IP address of a system that can do NetBIOS? name resolution for clients. Any Unix system running Samba will be able to perform this role.
- Click the Save button at the bottom of the page to go back to the subnet form.
- If this is your first subnet, you will need to make sure that the server is configured to use the right network interface for your system. Return to the module's main page, and click on the Edit Network Interface button at the bottom of the page. Then select the interface for the new subnet from the Listen on interfaces list, and click Save. If you have multiple network interfaces and have created subnet configurations for each of them, then all the interfaces must be selected for the server to work properly.
- If you are running version 3 of the ISC DHCP server (shown on the main page) and this is your first subnet, you may need to set the DDNS update style before the server can be started. Even if you are not using DDNS, some versions insist on an entry existing in the configuration file for it. Click on the Edit Client Options button on the main page and scroll down to the Dynamic DNS update style field. Select None and click Save to return to the module index.
- Back on the main page and click on the Start Server or Apply Changes button. If something goes wrong, the error message generated by the DHCP server will be displayed. The most common problem is a mismatch between the network interface settings and the network address for the subnet. Another that often shows up is related to the ddns-update-style directive, which step 21 explains how to set.
The subnet creation form
The subnet client options page
Once your first subnet has been created and the server started,
you can test it by configuring a client system to use DHCP. When
the client boots up, it should contact the server and be assigned
an address, DNS and routing information. You should also be able
to see the client on the leases page, covered in the subsequent
Viewing and managing leases
An existing subnet can be edited by clicking on its icon on the
main page, changing fields and hitting the Save
you want to edit options for clients in the subnet, you will need
to click on Edit Client Options
as in the instructions above,
make your changes and then click Save
on that page. After any
modifications, the Apply Changes
button must be used to make
A subnet can be deleted using the Delete
button on its editing
form. Any hosts, groups or address pools that it contains will
be removed as well, so be careful. After deleting, use the Network
Interfaces page to de-select the interface for the subnet - failure
to do so will cause the DHCP server to display an error message
when Apply Changes
is clicked, which must be done to make the
If the subnet contains any hosts or groups, a confirmation page
will be displayed when Delete
is clicked listing all the groups
and hosts that will be deleted as well. Only when the Yes
is hit will be subnet (and all it contains) actually be removed.
Another way to create a subnet inside a shared network is to click
on the Add a new subnet
link on the shared network's page. This
will bring up the same subnet creation form shown in the screenshot above,
but without the Shared network
field. Instead, the shared
net is shown at the top of the page under the title. The rest of the
creation process is identical.
A subnet configuration entry must be created for each IP network
that you want to allocate addresses on. Typically, there will
be one for each LAN connected to your system via an Ethernet, Token
Ring or 802.11 network card. If two IP networks are actually on
the same LAN, then both their subnets must be inside a shared network,
as explained in the Adding and editing shared networks
You must also make sure that every network interface that is connected
to a network on which your DHCP server is assigning addresses
is selected on the Network Interface page. If not, an error will
be reported when the server is started or changes are applied.
For most system administrators, this is not a big issue though
as they have only a single LAN in their organization.
Viewing and deleting leases
Every time the DHCP server supplies a dynamic address to a client,
it records information about the assignment in its lease file.
Fixed addresses assigned to specific hosts (covered in the *Adding
and editing fixed hosts*) section do not trigger the creation
of a lease, as they are considered permanent. You can use this
module to view all current leases or expired leases, and to delete
those that exist. Removing a lease tells the server that its IP
address is no longer in use, and can be assigned to some other client.
This should only be done if the client really isn't using the address
any more though, for example if it crashed while holding a long
To view and delete leases, the steps to follow are :
- On the module's main page, click on the List Active Leases button. This will display a table listing all currently active leases, with the IP address, client name and start time shown for each.
- To show leases that have expired as well, click on the List all active and expired leases button at the bottom of the page.
- To remove a lease, click on its IP address in the list. The DHCP server will be stopped and re-started automatically to make the deletion active.
It is also possible to view the leases to clients in just a single
subnet by clicking on the List Leases
button on the subnet editing
form. This can be useful if you have several networks connected
to your system with a large number of clients, and want to limit
the size of the lease display.
Editing global client options
The Adding and editing subnets
section explains how to set
client options (such as DNS and gateway IP addresses) that are
supplied to all clients in a subnet. However, if you have more
than one network or many fixed hosts, it can be more convenient
to set option that apply to all clients of the server. These options
can still be overridden for individual subnets, hosts and groups
if you wish.
To edit global client options, the steps to follow are :
- Click on the Edit Client Options near the bottom of the module's main page. This will take you to a form similar to the one shown in the screenshot above.
- Change any of the fields as explained in steps 11 to 18 of the Adding and editing subnets section.
- At the bottom of the form are fields for setting the default and maximum lease times for all clients, along with a few other options. These have the same meanings as similarly named fields on the subnet creation page.
- Click the Save button to update the DHCP server configuration file and return to the module's main page.
- Hit the Apply Changes button to make your new settings active.
Client options specified for a subnet override those defined
globally, and are in turn overridden by options for hosts within
Adding and editing fixed hosts
If you want to fix the IP address that is assigned to a specific
host, you will need to add a host entry to the DHCP server configuration.
This also allows you to set client options that apply only to that
host, such as the DNS server addresses or default router.
The server identifies hosts by their MAC (Medium Access Control)
address, which on an Ethernet LAN is the Ethernet address of the
client's network card. Typically this address is fixed, but
a few network cards allow it to be changed. On Linux systems, you
can find the MAC address by running the command ifconfig eth0
as root and looking for a string of 6 bytes in hex separated by colons,
like 00:D0:B7:1D:FB:A1. On Windows, the winipcfg program can
provide the information although it is displayed with dashes
instead of colons. Other operating systems have their own ways
of finding the Ethernet address.
Once you know the MAC address of the host, it can be added to the
DHCP server configuration as follows :
- On the module's main page, click on the Add a new host link in the Hosts and Host Groups section. This will bring up the host creation form shown in the image below.
- Enter a name into the Host name field. This should match the hostname that the client is configured with, or its fully-qualified name on your network. However, this is not mandatory.
- Select the type of network (such as Ethernet) that the host in on from the menu in the Hardware address field. In the text box next to it, enter the host's MAC address as a series of 6 hex bytes separated by colons, like 00:D0:B7:1D:FB:A1.
- Enter the IP address that should be always assigned to this client into the Fixed IP address field.
- If you want this host to inherit client options from a subnet, select Subnet from the menu in the Host assigned to field. The list next to it will be filled in with the names of all existing subnets, allowing you to select the one that the host should be under. The fixed IP address must be within the subnet's network though, and the client must be connected to its LAN. Hosts can also be created inside shared networks or host groups, by choosing Shared Network or Group from the menu and selecting the appropriate entry from the list to the right.
- If this host needs to network boot from a server, enter the name of that server into the Boot file server field. You must also fill in the Boot filename field with the path to an appropriate boot file (downloadable via TFTP) on the server. Generally, network booting is used by simple clients like X terminals and diskless workstations. For it to work, you must set up a TFTP server which contains the correct boot files for the client, which is not covered in this chapter.
- Click the Create button at the bottom of the form, and you will be returned to the module's main page which will now include an icon for the new host.
- To edit the client options that are assigned to this host, click on its icon to go to its editing page, then on Edit Client Options. This is not always necessary if the host is a member of a subnet that already has these options set, or if they have been defined globally as explained in Editing global client options.
- Fill in the form as you would for a subnet, as explained in the Adding and editing subnets section.
- Click the Save button to return to the host form.
- Return to the main page, and hit the Apply Changes button. From how on, the host will be assigned the IP address and options that you have chosen. It will no longer appear on the lease list, as its IP assignment is permanent.

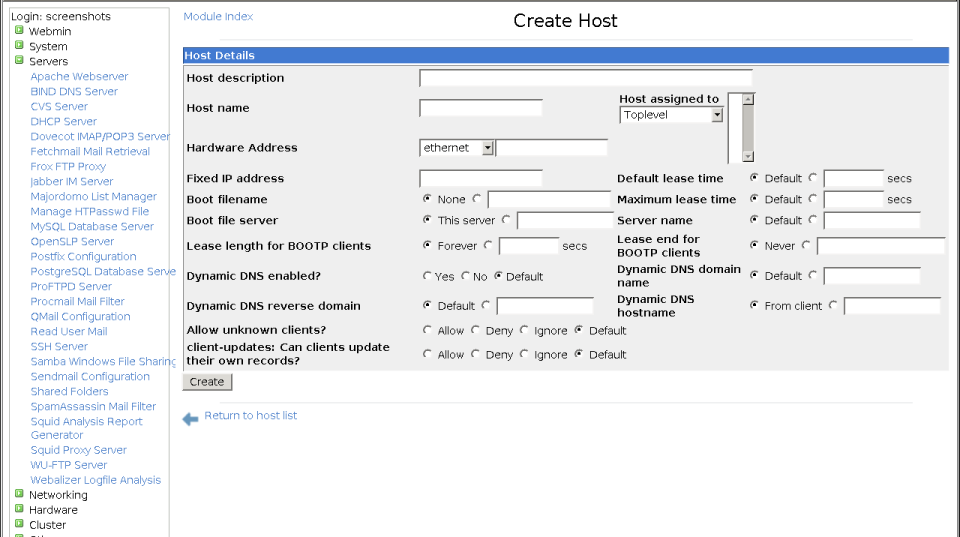

Creating a new host
Once a host has been created, you can change its fixed IP address,
MAC address and other options by clicking on its icon on the module's
main page, which will take you to the host editing form. After
making modifications, hit Save
to update the server configuration
and then Apply Changes
to make them active. A host can also be
deleted with the Delete
button on the editing page. From then
on, the client system will receive a dynamically allocated address
from one of the ranges for its subnet, rather than a fixed addresses.
A host can also be created by clicking on the Add a new host
on the subnet, shared network or group editing page. If done this
way, the Host assigned to
field is no longer displayed on the
creation form - instead, the parent that it will be added to is
shown at the top of the page. All the other steps in the process
of adding the host are the same though.
If you have a large number of hosts and want all of them to use the
same client options, then they should be placed in a group or shared
network. See the section on Adding and editing groups
information on group management. The DHCP server configuration
allows you to define several levels of groups, which allows for
quite complex configurations. If you have more than one fixed
address host on your network, they definitely should be both
under a subnet or group to avoid duplicating settings.
Adding and editing shared networks
A shared network is a group of subnets that shared the same physical
LAN. If you have multiple IP networks on the same physical network,
then the DHCP server configuration entries for all of them must
be placed inside a shared network. Failure to do so may cause the
server to behave incorrectly or report an error message when
started. On the other hand, you must not put subnets that do not
share the same LAN in the same shared network either.
It is also possible for a shared network to contain a single subnet,
although this does not really achieve anything. However, it
may be useful for grouping configuration entries, as a shared
network can contain hosts and groups as well, and have client
options that apply to all its members.
To create a shared network, the steps to follow are :
- On the module's main page, click on the Add a new shared network link under Subnets and Shared Networks.
- Enter a short name for the network into the Network name field, such as homelan. This is used only when displaying the shared network on the main page.
- To set the lease lengths for all clients of subnets under this shared network, fill in the Default lease time and Maximum lease time fields. Their meanings are the same as on the subnet creation form, documented in the Adding and editing subnets section.
- In the Subnets in this shared network field, select any existing subnets that you want to move into this shared network. All existing subnets including those in other shared networks will be listed. You must choose at least one subnet, as a shared network cannot be empty.
- Click the Create button at the bottom of the page. Your new shared network will be added to the server's configuration, and an icon for it will appear on the module's main page.
- If you want to set client options that will apply to all subnets in the shared network, client on its icon and then on Edit Client Options. Set any of the fields that you want, and then hit Save to return to the shared network form.
- Click the Apply Changes button to make it active.
Once a shared network has been created, subnets can be created
in or move to it using the Shared network
field on the subnet
form. The same field can also be used to move a subnet out of any
shared networks, by selecting the
Once a shared network has been created, it can be renamed or edited
by clicking on its icon, changing fields and hitting the Save
button. Or is can be removed altogether with the Delete
Trying to delete a shared network that contains subnets, hosts
or groups will bring up a confirmation page asking if you really
want to go ahead. If you click Yes
, all the configuration entries
that the shared network contains will be deleted as well. As usual,
after making changes or deleting, you must click the Apply Changes
button on the main page to activate the new settings.
Adding and editing groups
Unlike subnets, hosts and shared networks, group entries in
the DHCP server configuration do not actually effect the server's
behaviour in any way. Instead, they are just used to define options
that will apply to multiple hosts. Even though there are other
ways that this can be achieved (such as putting the hosts under
a subnet), using a group gives you extra flexibility.
Groups can be defined under subnets and shared networks, but
not other groups. In order DHCP server versions, groups do not normally have names - instead,
they are identified in Webmin by the number of hosts that they
contain. Never versions do support group names, and they can be
set using Webmin.
To create a new host group, the steps to follow are :
- On the module's main page, click on the Add a new host group link under Hosts and Host Groups to go to the group creation form.
- Select any existing hosts that you want to be members of this group from the Hosts in this group list.
- If you want this group to be under a subnet, choose Subnet from the menu in the Group assigned to field, and select the subnet in the list next to it. All hosts in the group must have fixed IP addresses that fall within the subnet's network. Similarly, a group can be created inside a shared network by choosing Shared Network from the menu and selecting the network name from the list. In both cases, the group will inherit client options and other settings (like the lease length) from its parent subnet or shared net.
- If hosts in the group need to network boot from a server, enter the name of that server into the Boot file server field. You must also fill in the Boot filename field with the path to an appropriate boot file (downloadable via TFTP) on the boot server.
- Click the Create button. You will be returned to the module's main page, while will now include an icon for the new group.
- Click on the group icon to bring up its editing form, and then on Edit Client Options. This will take you to the page shown in way above for setting options that are sent to client hosts in this group.
- Set any of the options such as the DNS or NIS servers by following steps 10 to 18 of the Adding and editing subnets section.
- Click the Save button at the bottom of the page to save the options and return to the group form.
- Go back to the module's main page and hit Apply Changes to make your new group active.
Once a group has been created, new or existing hosts can be moved
into it using the Host assigned to
field on the host form. Any
host added to a group will inherit client options and network
boot settings from the group, unless overridden by settings
for the host itself.
As usual, a group can be edited by clicking on its icon on the module's
main page, making changes and clicking Save
. A group can also
be removed with the Delete
button on its editing page - however,
if it contains any hosts you will be asked to confirm the deletion
before it and the hosts are actually removed.
A group can also be created under a subnet or shared network by
clicking on the Add a new host group
link on the page reached
by clicking on one of their icons. The group creation form that
is displayed no longer has a Group assigned to
field - instead,
the name of the subnet or shared network that it will be added to
is displayed at the top of the page. Apart from that difference,
the instructions above can still be followed.
Module access control
As the WebminUsers
page explains, the Webmin Users module can be used to
limit what a user or group can do with a particular module. For
this module, you can control exactly which hosts, groups, subnets
and shared networks a user can edit. This can be useful for granting
a sub-administrator the rights to set options for only a few hosts
within your server configuration, while preventing him from
changing subnets and other hosts.
Once a user has been given access to the module, to limit him to
editing only certain hosts the steps to follow are :
- In the Webmin Users module, click on DHCP Server next to the name of the user. This will bring up the module access control form.
- Change the Can edit module configuration? field to No, so that he cannot edit the configuration file path and the commands that the module uses.
- Leave Can apply changes? set to Yes, so that he can activate any changes that he makes.
- Change Can edit global options? to No, so that he cannot change options that apply to all clients.
- Can view leases? can be safely left set to Yes, but Can remove leases? should be set to No.
- The Uniq host names?, Uniq subnet IP addresses? and Uniq shared-net names? fields should be changed to Yes to prevent the creation of clashing hosts, subnets and shared networks.
- The Use security level field determines which configuration entries in the hierarchy the user is allowed access to. The available options and their meanings are : *Level 0 *The user will have access to all entries to which he has been granted. *Level 1 *The user will have access to granted entries, as long as he can access all their children as well. *Level 2 *The user will have access to granted entries, as long as he can access all parent and ancestor entries. *Level 3 *Like levels
- and 3 combined. Generally, you should leave this option set to level 0 for simplicity's sake.
- Assuming you are limiting the user to only editing certain hosts, in the Access groups and Access shared nets field de-select all three options. This will stop the user viewing and editing any groups or shared networks. To stop the user creating hosts and subnets, de-select create in the Access hosts and Access subnets fields.
- Change the Enable per-subnet ACLs? and Enable per-host ACLs? fields to Yes. This allows you to select exactly which hosts and subnets the user can access from the Per-object ACLs section below. If the first of these fields is set to No instead, the Access subnets checkboxes above determine if the user can view and edit all subnets. Similarly, if the Enable per-host ACLs? field is set to No then the Access hosts checkboxes control the viewing and editing of all hosts.
- In the Per-object ACLs section, select read/write for any hosts and subnets that the user should be able to configure, and not allowed for the rest. Choosing read only will allow him to view the host or subnet without being able to change it.
- Finally, click the Save button at the bottom of the page to make the new restrictions active.
Another common use of the DHCP Server module's access control
page is limiting a user to the viewing and cancelling of leases
only. This can be done by setting the Can view leases?
remove leases?* fields to Yes
, and everything else to No
The user should also be denied access to all hosts, subnets and
so on, or possibly given read-only permissions.
